OBD2 Code Reader Scanner Support Multi-language

Language

Support Multi-languages: English, German, French, Spanish, Italian, Chinese, Russian, Portuguese, Polish

Screen2.8inch Colourful screen

Main control chipSTM32F103VET6

Firware VersionV1.1

ApplicationUniversal Cars after 1996 Year

Supported Protocols1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Unit dimensions17*8.5*2.5cm

Size21*12*6cm

Weight0.46Kg

Package

Paper box package

Function

1. Read the error diagnosis code

2. Clear the fault code (clear the error code and turn off the MIL)

3. Engine speed per minute (RPM)

4. The calculated load value

5. Coolant temperature

6. Fuel system status

7. Speed

8. Short-term fuel situation

9. Long-term fuel situation

10. Intake manifold pressure

11. Fuel injection advance time

12. Intake air temperature

13. Air flow speed

14. Absolute position of throttle

15. Oxygen detection voltage associated with short-term fuel status

16. Fuel system status

17. Fuel pressure

18. Fuel consumption monitoring, etc

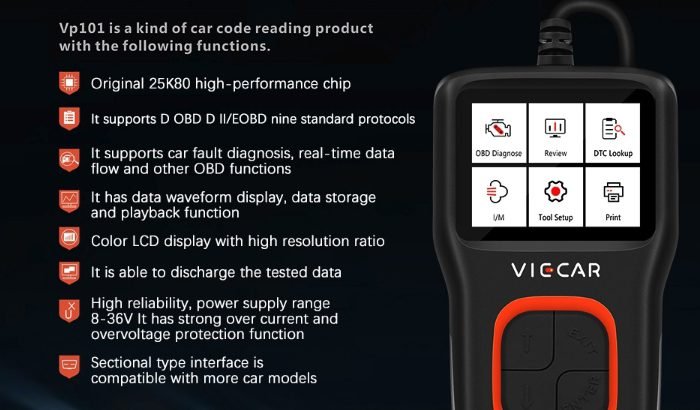

Advantages

1. Plug and play-no battery needed-powered by a removable OBD II cable

2. 2.8 inch 320 * 240 HD easy-to-read TFT color LCD screen

3. Small size, suitable for your palm

4. Support multiple languages (English, German, French, Spanish, Italian, Chinese, Russian, Portuguese, Polish)

5. Print function (USB interface for printing)

6. USB upgrade function, Support software upgrade

7. Good reliability, wide supply voltage range 8 ~ 36V, with stronger overcurrent and overvoltage protection functions

8. Support nine standard protocols of OBD II / EOBD
